產品介紹

  • 因為没有内建穏壓器,所以發振時達成低抖動,低相位噪聲。

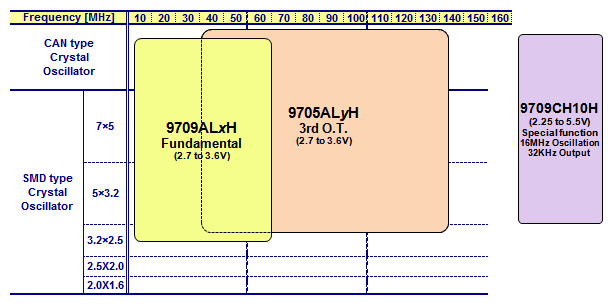

Low phase noise type
Product NameOscillation ModeRecommended Oscillation FrequencyOperating VoltageOutput FrequencyOutput Load
KH9709AL1H Fundamental 4~60MHz 2.7~3.6V fo ~30pF
KH9709AL2H Fundamental 4~60MHz 2.7~3.6V fo/2 ~30pF
KH9709AL3H Fundamental 4~60MHz 2.7~3.6V fo/4 ~30pF
KH9709AL4H Fundamental 4~60MHz 2.7~3.6V fo/8 ~30pF
KH9709AL5H Fundamental 4~60MHz 2.7~3.6V fo/16~30pF
KH9709AL6H Fundamental 4~60MHz 2.7~3.6V fo/32~30pF
KH9709CH10HFundamental 16.8MHz 2.25~5.5V32KHz~50pF
KH9705ALAH 3rd-overtone30~50MHz 2.7~3.6V fo ~30pF
KH9705ALBH 3rd-overtone45~70MHz 2.7~3.6V fo ~30pF
KH9705ALCH 3rd-overtone65~100MHz 2.7~3.6V fo ~30pF
KH9705ALDH 3rd-overtone95~125MHz 2.7~3.6V fo ~30pF
KH9705ALEH 3rd-overtone100~133MHz2.7~3.6V fo ~30pF


  • 因為有内建穏壓器,所以發振時可達成比較低的周波數変動。
Low frequency deviation type
Product NameOscillation ModeRecommended Oscillation FrequencyOperating VoltageOutput FrequencyOutput Load
KH9827AL1H Fundamental 10~60MHz 2.25~3.63Vfo ~30pF
KH9827AL2H Fundamental 10~60MHz 2.25~3.63Vfo/2 ~30pF
KH9827AL3H Fundamental 10~60MHz 2.25~3.63Vfo/4 ~30pF
KH9827AL4H Fundamental 10~60MHz 2.25~3.63Vfo/8 ~30pF
KH9827AL5H Fundamental 10~60MHz 2.25~3.63Vfo/16~30pF
KH9827AL6H Fundamental 10~60MHz 2.25~3.63Vfo/32~30pF
KH9827AL7H Fundamental 10~60MHz 2.25~3.63Vfo/64~30pF
KH9829A10H Fundamental 16.8MHz 1.6~3.63V 32KHz~15pF
KH9829B11H Fundamental 33.6MHz 1.6~3.63V 32KHz~15pF
KH9827ALAH 3rd-overtone30~45MHz 2.25~3.63Vfo ~30pF
KH9827ALBH 3rd-overtone40~55MHz 2.25~3.63Vfo ~30pF
KH9827ALCH 3rd-overtone50~75MHz 2.25~3.63Vfo ~30pF
KH9827ALDH 3rd-overtone65~110MHz 2.25~3.63Vfo ~30pF
KH9835ALAH 3rd-overtone90~140MHz 2.25~3.63Vfo ~15pF
KH9835ALBH 3rd-overtone120~160MHz2.25~3.63Vfo ~15pF


  • 低周波數偏差型(低消耗電力版)的新産品,已統合常温與高温為同一産品。
  • 考慮採用常温産品時請参考簡易規格書(請點擊這裡)
  • 内建有穏壓器且在低電壓發振時亦可達到較低的周波數変動。
  • 是目前世界上面積最小的SPXO IC(0.5×0.52um;2017年1月弊司調査),厚度為100um的超薄型。

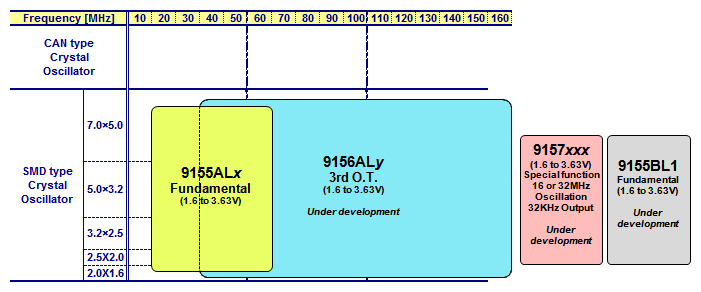

Low frequency deviation type
Product NameOscillation ModeRecommended Oscillation FrequencyOperating VoltageOutput FrequencyOutput Load
KH9155AL1 Fundamental 10~60MHz 1.6~3.63Vfo ~15pF
KH9155AL2 Fundamental 10~60MHz 1.6~3.63Vfo/2 ~15pF
KH9155AL3
(under development)
Fundamental 10~60MHz 1.6~3.63Vfo/4 ~15pF
KH9155AL4
(under development)
Fundamental 10~60MHz 1.6~3.63Vfo/8 ~15pF
KH9155AL5
(under development)
Fundamental 10~60MHz 1.6~3.63Vfo/16~15pF
KH9155AL6
(under development)
Fundamental 10~60MHz 1.6~3.63Vfo/32~15pF
KH9155AL7
(under development)
Fundamental 10~60MHz 1.6~3.63Vfo/64~15pF
KH9155BL1
(under development)
Fundamental 50~100MHz 1.6~3.63Vfo ~15pF
KH9157A10
(under development)
Fundamental 16.8MHz 1.6~3.63V32KHz~15pF
KH9157B11
(under development)
Fundamental 33.6MHz 1.6~3.63V32KHz~15pF
KH9156ALA
(under development)
3rd-overtone40~55MHz 1.6~3.63Vfo ~15pF
KH9156ALB
(under development)
3rd-overtone50~75MHz 1.6~3.63Vfo ~15pF
KH9156ALC
(under development)
3rd-overtone65~110MHz 1.6~3.63Vfo ~15pF
KH9156ALD
(under development)
3rd-overtone90~140MHz 1.6~3.63Vfo ~15pF
KH9156ALE
(under development)
3rd-overtone120~160MHz1.6~3.63Vfo ~15pF
  • 簡易數據表需使用Adobe Acrobat Reader DC。
    如果您沒有安裝,請下載Adobe Reader
  • 簡易數據表中所記載的内容,並不是指在所有條件下都保證的内容(產品性能會隨著所匹配的水晶和組裝狀態等的不同而變動)。在實際使用時,請考慮外部諸多使用條件。
  • 簡易數據表中所記載的數據,有不預先告知而進行變更的可能。
  • 如果您需要更加詳細的數據,請聯繫我們
