产品介绍

  • 因为没有内建穏压器,所以发振时达成低抖动,低相位噪声。
Low phase noise type
Product NameOscillation ModeRecommended Oscillation FrequencyOperating VoltageOutput FrequencyOutput Load
KH9709AL1H Fundamental 4~60MHz 2.7~3.6V fo ~30pF
KH9709AL2H Fundamental 4~60MHz 2.7~3.6V fo/2 ~30pF
KH9709AL3H Fundamental 4~60MHz 2.7~3.6V fo/4 ~30pF
KH9709AL4H Fundamental 4~60MHz 2.7~3.6V fo/8 ~30pF
KH9709AL5H Fundamental 4~60MHz 2.7~3.6V fo/16~30pF
KH9709AL6H Fundamental 4~60MHz 2.7~3.6V fo/32~30pF
KH9709CH10HFundamental 16.8MHz 2.25~5.5V32KHz~50pF
KH9705ALAH 3rd-overtone30~50MHz 2.7~3.6V fo ~30pF
KH9705ALBH 3rd-overtone45~70MHz 2.7~3.6V fo ~30pF
KH9705ALCH 3rd-overtone65~100MHz 2.7~3.6V fo ~30pF
KH9705ALDH 3rd-overtone95~125MHz 2.7~3.6V fo ~30pF
KH9705ALEH 3rd-overtone100~133MHz2.7~3.6V fo ~30pF


  • 因为有内建穏压器,所以发振时可达成比较低的周波数変动。

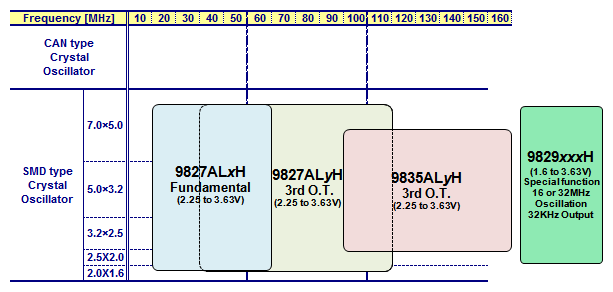

Low frequency deviation type
Product NameOscillation ModeRecommended Oscillation FrequencyOperating VoltageOutput FrequencyOutput Load
KH9827AL1H Fundamental 10~60MHz 2.25~3.63Vfo ~30pF
KH9827AL2H Fundamental 10~60MHz 2.25~3.63Vfo/2 ~30pF
KH9827AL3H Fundamental 10~60MHz 2.25~3.63Vfo/4 ~30pF
KH9827AL4H Fundamental 10~60MHz 2.25~3.63Vfo/8 ~30pF
KH9827AL5H Fundamental 10~60MHz 2.25~3.63Vfo/16~30pF
KH9827AL6H Fundamental 10~60MHz 2.25~3.63Vfo/32~30pF
KH9827AL7H Fundamental 10~60MHz 2.25~3.63Vfo/64~30pF
KH9829A10H Fundamental 16.8MHz 1.6~3.63V 32KHz~15pF
KH9829B11H Fundamental 33.6MHz 1.6~3.63V 32KHz~15pF
KH9827ALAH 3rd-overtone30~45MHz 2.25~3.63Vfo ~30pF
KH9827ALBH 3rd-overtone40~55MHz 2.25~3.63Vfo ~30pF
KH9827ALCH 3rd-overtone50~75MHz 2.25~3.63Vfo ~30pF
KH9827ALDH 3rd-overtone65~110MHz 2.25~3.63Vfo ~30pF
KH9835ALAH 3rd-overtone90~140MHz 2.25~3.63Vfo ~15pF
KH9835ALBH 3rd-overtone120~160MHz2.25~3.63Vfo ~15pF


  • 低周波数偏差型(低消耗电力版)的新产品,已统合常温与高温为同一产品。
  • 考虑采用常温产品时请参考简易规格书(请点击这里)
  • 内建有穏压器且在低电压发振时亦可达到较低的周波数変动。
  • 是目前世界上面积最小的SPXO IC(0.5×0.52um;2017年1月弊司调查),厚度为100um的超薄型。

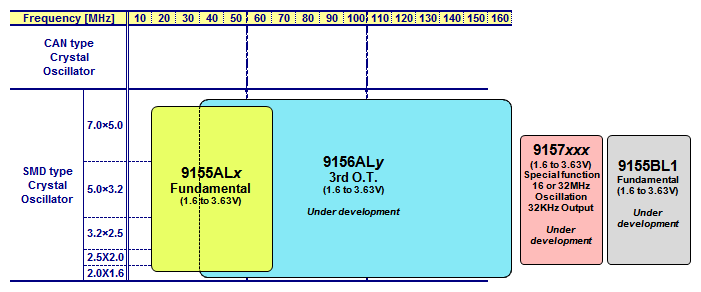

Low frequency deviation type
Product NameOscillation ModeRecommended Oscillation FrequencyOperating VoltageOutput FrequencyOutput Load
KH9155AL1 Fundamental 10~60MHz 1.6~3.63Vfo ~15pF
KH9155AL2 Fundamental 10~60MHz 1.6~3.63Vfo/2 ~15pF
KH9155AL3
(under development)
Fundamental 10~60MHz 1.6~3.63Vfo/4 ~15pF
KH9155AL4
(under development)
Fundamental 10~60MHz 1.6~3.63Vfo/8 ~15pF
KH9155AL5
(under development)
Fundamental 10~60MHz 1.6~3.63Vfo/16~15pF
KH9155AL6
(under development)
Fundamental 10~60MHz 1.6~3.63Vfo/32~15pF
KH9155AL7
(under development)
Fundamental 10~60MHz 1.6~3.63Vfo/64~15pF
KH9155BL1
(under development)
Fundamental 50~100MHz 1.6~3.63Vfo ~15pF
KH9157A10
(under development)
Fundamental 16.8MHz 1.6~3.63V32KHz~15pF
KH9157B11
(under development)
Fundamental 33.6MHz 1.6~3.63V32KHz~15pF
KH9156ALA
(under development)
3rd-overtone40~55MHz 1.6~3.63Vfo ~15pF
KH9156ALB
(under development)
3rd-overtone50~75MHz 1.6~3.63Vfo ~15pF
KH9156ALC
(under development)
3rd-overtone65~110MHz 1.6~3.63Vfo ~15pF
KH9156ALD
(under development)
3rd-overtone90~140MHz 1.6~3.63Vfo ~15pF
KH9156ALE
(under development)
3rd-overtone120~160MHz1.6~3.63Vfo ~15pF
  • 简易数据表需使用Adobe Acrobat Reader DC。
    如果您没有安装,请下载Adobe Reader
  • 简易数据表中所记载的内容,并不是指在所有条件下都保证的内容(产品性能会随着所匹配的水晶和组装状态等的不同而变动)。在实际使用时,请考虑外部诸多使用条件。
  • 简易数据表中记载的数据,有不予先告知而进行变更的可能。
  • 如果您需要更加详细的数据,请联系我们
