產品介紹

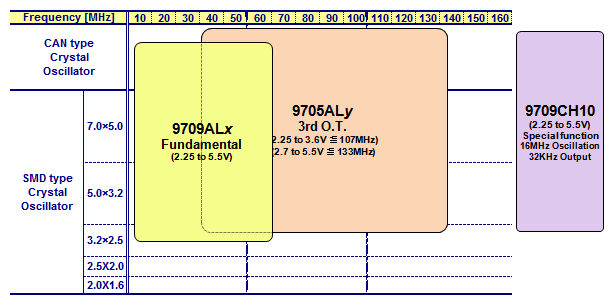

- 因為没有内建穏壓器，所以發振時達成低抖動，低相位噪聲。
 | |||||
| Product Name | Oscillation Mode | Recommended Oscillation Frequency | Operating Voltage | Output Frequency | Output Load |
|---|---|---|---|---|---|
KH9709AL1 | Fundamental | 4 to 60MHz | 2.25 to 5.5V | fo | <50pF |
| KH9709AL2 | Fundamental | 4 to 60MHz | 2.25 to 5.5V | fo/2 | <50pF |
| KH9709AL3 | Fundamental | 4 to 60MHz | 2.25 to 5.5V | fo/4 | <50pF |
| KH9709AL4 | Fundamental | 4 to 60MHz | 2.25 to 5.5V | fo/8 | <50pF |
| KH9709AL5 | Fundamental | 4 to 60MHz | 2.25 to 5.5V | fo/16 | <50pF |
| KH9709AL6 | Fundamental | 4 to 60MHz | 2.25 to 5.5V | fo/32 | <50pF |
| KH9709CH10 | Fundamental | 16.8MHz | 2.25 to 5.5V | 32KHz | <50pF |
| KH9705ALA | 3rd-overtone | 30 to 40MHz | 2.25 to 3.6V | fo | <50pF |
| 30 to 50MHz | 2.7 to 5.5V | ||||
| KH9705ALB | 3rd-overtone | 40 to 55MHz | 2.25 to 3.6V | fo | <50pF |
| 70 to 70MHz | 2.7 to 5.5V | <30pF | |||
| KH9705ALC | 3rd-overtone | 55 to 75MHz | 2.25 to 3.6V | fo | <30pF |
| 65 to 100MHz | 2.7 to 5.5V | ||||
| KH9705ALD | 3rd-overtone | 75 to 100MHz | 2.25 to 3.6V | fo | <30pF |
| 95 to 125MHz | 2.7 to 5.5V | <15pF | |||
| KH9705ALE | 3rd-overtone | 90 to 107MHz | 2.25 to 3.6V | fo | <30pF |
| 100 to 133MHz | 2.7 to 5.5V | <15pF | |||

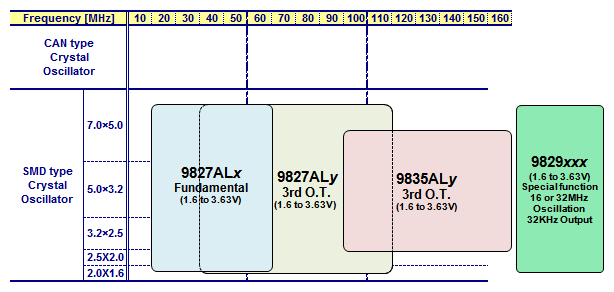

- 因為有内建穏壓器，所以發振時可達成比較低的周波數変動。
 | |||||
| Product Name | Oscillation Mode | Recommended Oscillation Frequency | Operating Voltage | Output Frequency | Output Load |
|---|---|---|---|---|---|
| KH9827AL1 | Fundamental | 10 to 60MHz | 1.6 to 3.63V | fo | <30pF |
| KH9827AL2 | Fundamental | 10 to 60MHz | 1.6 to 3.63V | fo/2 | <30pF |
| KH9827AL3 | Fundamental | 10 to 60MHz | 1.6 to 3.63V | fo/4 | <30pF |
| KH9827AL4 | Fundamental | 10 to 60MHz | 1.6 to 3.63V | fo/8 | <30pF |
| KH9827AL5 | Fundamental | 10 to 60MHz | 1.6 to 3.63V | fo/16 | <30pF |
| KH9827AL6 | Fundamental | 10 to 60MHz | 1.6 to 3.63V | fo/32 | <30pF |
| KH9827AL7 | Fundamental | 10 to 60MHz | 1.6 to 3.63V | fo/64 | <30pF |
| KH9829A10 | Fundamental | 16.8MHz | 1.6 to 3.63V | 32KHz | <15pF |
| KH9829B11 | Fundamental | 33.6MHz | 1.6 to 3.63V | 32KHz | <15pF |
| KH9827ALA | 3rd-overtone | 30 to 45MHz | 1.6 to 3.63V | fo | <30pF |
| KH9827ALB | 3rd-overtone | 40 to 55MHz | 1.6 to 3.63V | fo | <30pF |
| KH9827ALC | 3rd-overtone | 50 to 75MHz | 1.6 to 3.63V | fo | <30pF |
| KH9827ALD | 3rd-overtone | 65 to 110MHz | 1.6 to 3.63V | fo | <30pF |
| KH9835ALA | 3rd-overtone | 90 to 140MHz | 1.6 to 3.63V | fo | <15pF |
| KH9835ALB | 3rd-overtone | 120 to 160MHz | 1.6 to 3.63V | fo | <15pF |
| 在小型低消耗電力版的新産品中已統合常温與高温為同一産品。 参考簡易規格書請點擊這裡。 |
- 簡易數據表需使用Adobe Acrobat Reader DC。
如果您沒有安裝，請下載Adobe Reader - 簡易數據表中所記載的内容，並不是指在所有條件下都保證的内容(產品性能會隨著所匹配的水晶和組裝狀態等的不同而變動)。在實際使用時，請考慮外部諸多使用條件。
- 簡易數據表中所記載的數據，有不預先告知而進行變更的可能。
- 如果您需要更加詳細的數據，請聯繫我們。
