Products

  • The type of products is featured with low jitter and low phase noise characteristics since it doesn't include a voltage regulator.

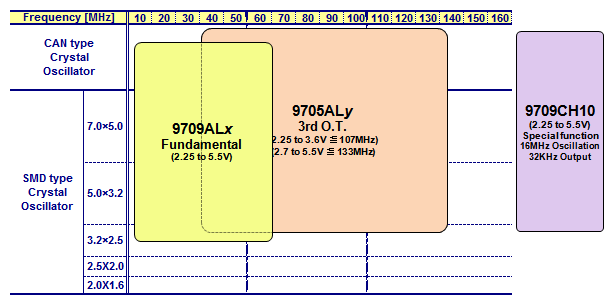

Low phase noise type
Product NameOscillation ModeRecommended Oscillation FrequencyOperating VoltageOutput FrequencyOutput Load
KH9709AL1 Fundamental 4～60MHz 2.25～5.5V fo ～50pF
KH9709AL2 Fundamental 4～60MHz 2.25～5.5V fo/2 ～50pF
KH9709AL3 Fundamental 4～60MHz 2.25～5.5V fo/4 ～50pF
KH9709AL4 Fundamental 4～60MHz 2.25～5.5V fo/8 ～50pF
KH9709AL5 Fundamental 4～60MHz 2.25～5.5V fo/16 ～50pF
KH9709AL6 Fundamental 4～60MHz 2.25～5.5V fo/32 ～50pF
KH9709CH10 Fundamental 16.8MHz 2.25～5.5V 32KHz ～50pF
KH9705ALA 3rd-overtone30～40MHz 2.25～3.6Vfo ～50pF
30～50MHz 2.7～5.5V
KH9705ALB 3rd-overtone40～55MHz 2.25～3.6Vfo ～50pF
70～70MHz 2.7～5.5V ～30pF
KH9705ALC 3rd-overtone55～75MHz 2.25～3.6Vfo ～30pF
65～100MHz 2.7～5.5V
KH9705ALD 3rd-overtone75～100MHz 2.25～3.6Vfo ～30pF
95～125MHz 2.7～5.5V ～15pF
KH9705ALE 3rd-overtone90～107MHz 2.25～3.6Vfo ～30pF
100～133MHz2.7～5.5V ～15pF

  • The type of products is operable with low frequency-deviation.

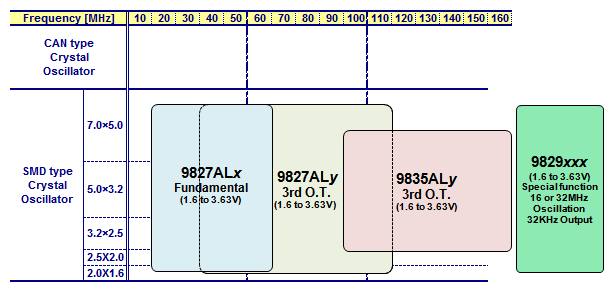

Low frequency deviation type
Product NameOscillation ModeRecommended Oscillation FrequencyOperating VoltageOutput FrequencyOutput Load
KH9827AL1Fundamental 10～60MHz 1.6～3.63Vfo ～30pF
KH9827AL2Fundamental 10～60MHz 1.6～3.63Vfo/2 ～30pF
KH9827AL3Fundamental 10～60MHz 1.6～3.63Vfo/4 ～30pF
KH9827AL4Fundamental 10～60MHz 1.6～3.63Vfo/8 ～30pF
KH9827AL5Fundamental 10～60MHz 1.6～3.63Vfo/16～30pF
KH9827AL6Fundamental 10～60MHz 1.6～3.63Vfo/32～30pF
KH9827AL7Fundamental 10～60MHz 1.6～3.63Vfo/64～30pF
KH9829A10Fundamental 16.8MHz 1.6～3.63V32KHz～15pF
KH9829B11Fundamental 33.6MHz 1.6～3.63V32KHz～15pF
KH9827ALA3rd-overtone30～45MHz 1.6～3.63Vfo ～30pF
KH9827ALB3rd-overtone40～55MHz 1.6～3.63Vfo ～30pF
KH9827ALC3rd-overtone50～75MHz 1.6～3.63Vfo ～30pF
KH9827ALD3rd-overtone65～110MHz 1.6～3.63Vfo ～30pF
KH9835ALA3rd-overtone90～140MHz 1.6～3.63Vfo ～15pF
KH9835ALB3rd-overtone120～160MHz1.6～3.63Vfo ～15pF

As for small-size, low power consumption type, products operable at a normal temperature and those operable at a high temperature are unified into one page.
See the brief data sheets at High Temperature Product page.
  • Brochures are PDF files. Please download from here and install Adobe Acrobat Reader DC to read PDF files, if you have not installed it yet.
  • There is no guarantee of recommended oscillation frequency. The frequency depends on combined crystals and mounting condition.
  • All specifications may be changed without notice.
  • Consult here for detailed datasheets about KH9155 series.
